EClad Casement Sash
BiltBest manufactured the EClad casement series from 1996-2010. This series utilized 5/8" insulated glass from 1996-2003; 3/4" insulated glass was used from 2003-2010. The EClad casement sash has extruded aluminum cladding on the exterior and wood on the interior of the sash. They are easily identified by the 45-degree miter cuts in the corners of the aluminum cladding on the exterior of the sash.
Unsure how to measure or what to select when ordering? No problem! Check out the step-by-step ordering instructions at the bottom of this page before beginning your order. After adding your replacement sash to the cart, you will be prompted to provide additional information (glass type, interior and exterior finishes, grille pattern, etc).
Call us for a quote if you need any custom colors, need to order in bulk (more than 6 sashes), need an awning sash, tempered glass, custom sizes, a size larger than what is listed below, or if you need a grille pattern not shown below.
BiltBest manufactured the EClad casement series from 1996-2010. This series utilized 5/8" insulated glass from 1996-2003; 3/4" insulated glass was used from 2003-2010. The EClad casement sash has extruded aluminum cladding on the exterior and wood on the interior of the sash. They are easily identified by the 45-degree miter cuts in the corners of the aluminum cladding on the exterior of the sash.
Unsure how to measure or what to select when ordering? No problem! Check out the step-by-step ordering instructions at the bottom of this page before beginning your order. After adding your replacement sash to the cart, you will be prompted to provide additional information (glass type, interior and exterior finishes, grille pattern, etc).
Call us for a quote if you need any custom colors, need to order in bulk (more than 6 sashes), need an awning sash, tempered glass, custom sizes, a size larger than what is listed below, or if you need a grille pattern not shown below.
BiltBest manufactured the EClad casement series from 1996-2010. This series utilized 5/8" insulated glass from 1996-2003; 3/4" insulated glass was used from 2003-2010. The EClad casement sash has extruded aluminum cladding on the exterior and wood on the interior of the sash. They are easily identified by the 45-degree miter cuts in the corners of the aluminum cladding on the exterior of the sash.
Unsure how to measure or what to select when ordering? No problem! Check out the step-by-step ordering instructions at the bottom of this page before beginning your order. After adding your replacement sash to the cart, you will be prompted to provide additional information (glass type, interior and exterior finishes, grille pattern, etc).
Call us for a quote if you need any custom colors, need to order in bulk (more than 6 sashes), need an awning sash, tempered glass, custom sizes, a size larger than what is listed below, or if you need a grille pattern not shown below.
Ordering Instructions:

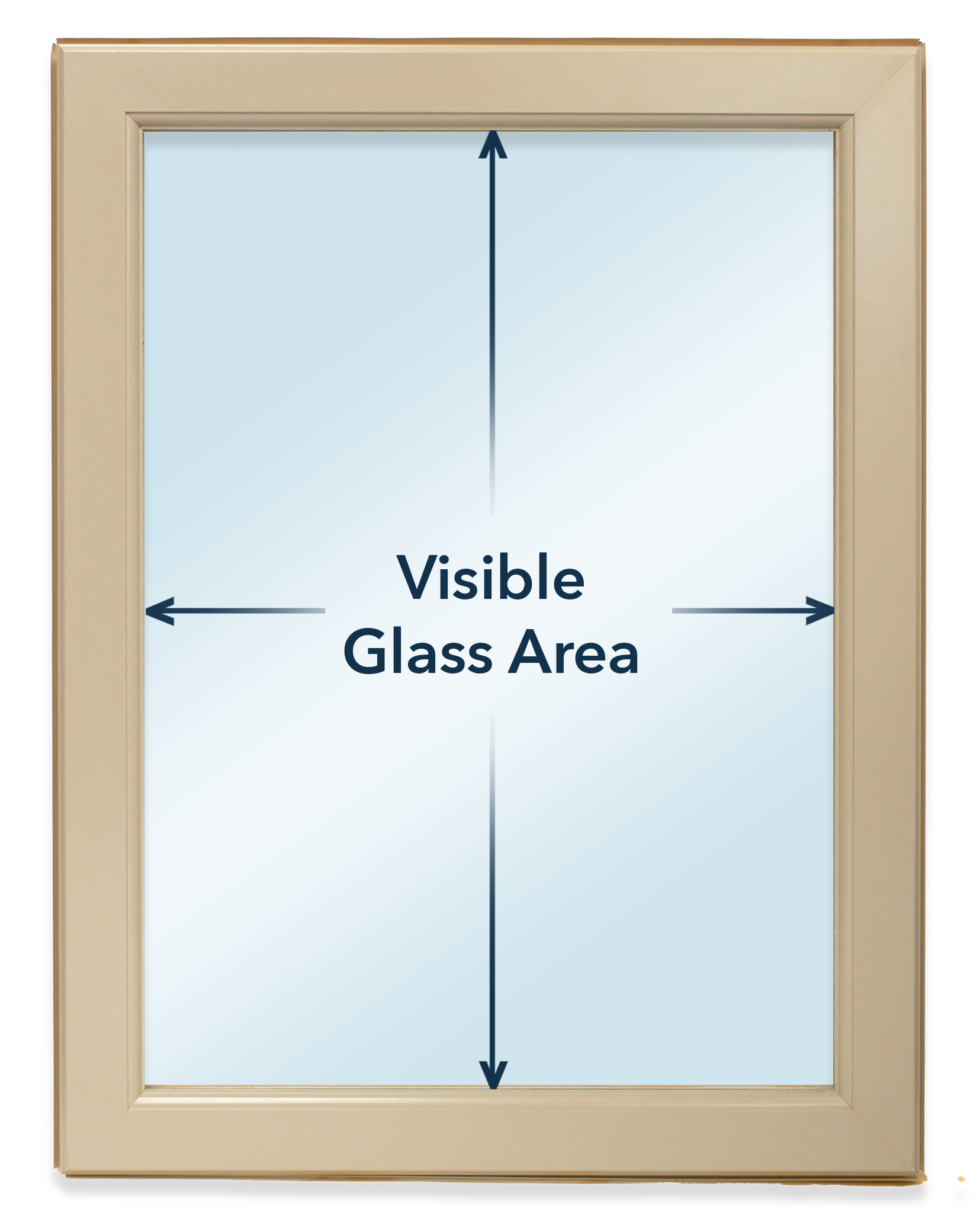

Step #1: Input the visible glass area for the sash you need to replace. The visible glass area is part of the glass you can actually look through. A small portion of your sash insulated glass is tucked behind the wood parts of your sash; do not include these portions of your glass when measuring the visible glass area.
Step #2: Choose whether your sash has decorative grilles.
This is an example of a sash with no decorative grilles.
Step #2 (continued): Choose whether your sash has decorative grilles.
This is an example of a sash with
grilles between the glass (GBG). GBG bars are located inside the insulated glass.
Step #2 (continued): Choose whether your sash has decorative grilles.
This is an example of a sash with simulated divided lite (SDL). SDL bars are located on the interior and exterior of the insulated glass.
Step #3: After completing Steps #1 and #2, add your sash to the cart. You will be asked for additional information after adding it the cart (decorative grille configuration, SDL bar width, exterior finish options, etc.)
If you are unsure whether you have BiltBest's EClad Casement sash, we recommend checking the following:

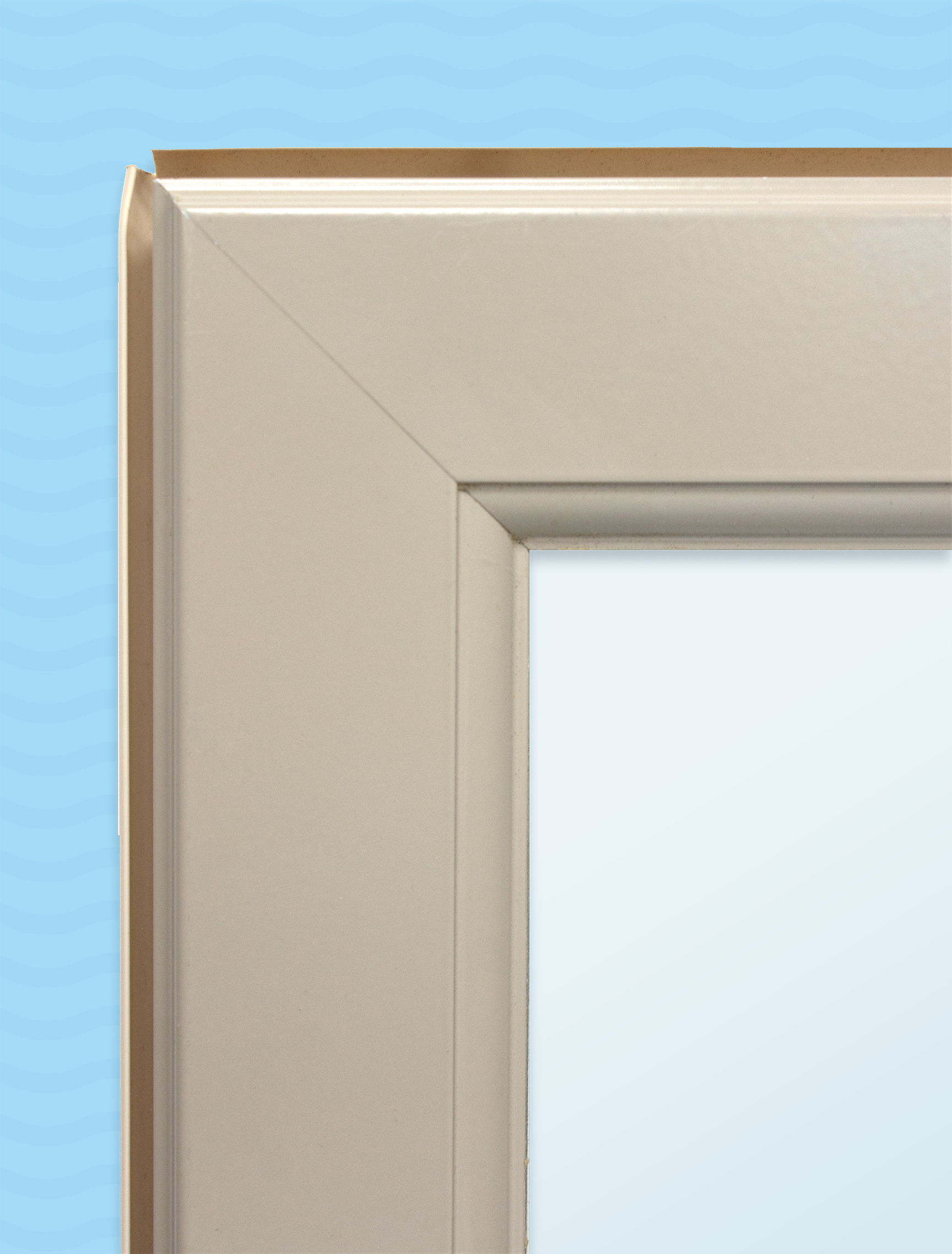

BiltBest manufactured the EClad casement series from 1996-2010. This series utilized 5/8" insulated glass from 1996-2003; 3/4" insulated glass was used from 2003-2010. The EClad casement sash has extruded aluminum cladding on the exterior and wood on the interior of the sash. They are easily identified by the 45-degree miter cuts in the corners of the aluminum cladding on the exterior of the sash.

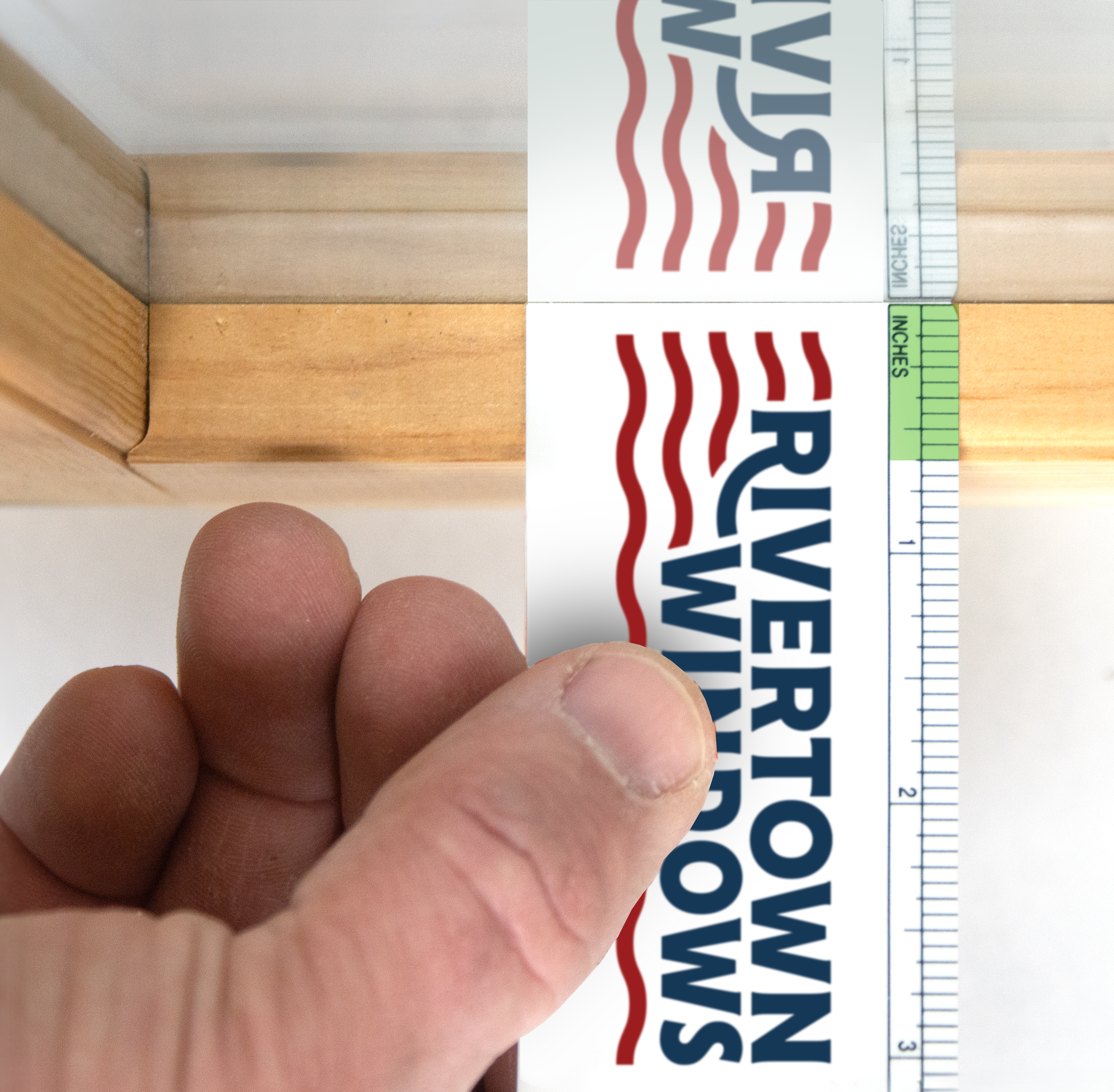

If the distance between the glass and edge of the wood part is approximately 5/8", then your EClad sash has 5/8" insulated glass. To further confirm that you have 5/8” glass, in addition to checking the width of your interior wood parts and your visible glass dimensions, you can double-check the interior and/or exterior dimensions of your sash with this chart: EClad Casement Dimensions Schedule-5/8”
If the distance between the glass and edge of the wood part is approximately 15/16", then your EClad sash has 3/4" insulated glass. To further confirm that you have 3/4” glass, in addition to checking the width of your interior wood parts and your visible glass dimensions, you can double-check the interior and/or exterior dimensions of your sash with this chart: EClad Casement Dimensions Schedule-3/4”
If your sash is fixed (no operator handle and no lock/keeper), look for birch buttons around the interior of your window. BiltBest used these birch buttons to cover the screws that fixed the sash in place.
